Smart Constant Pressure Water Supply System | Industrial Variable Frequency VFD Pump Skid

Intelligent VFD Constant Pressure Booster Pump System for Industrial & Commercial Use

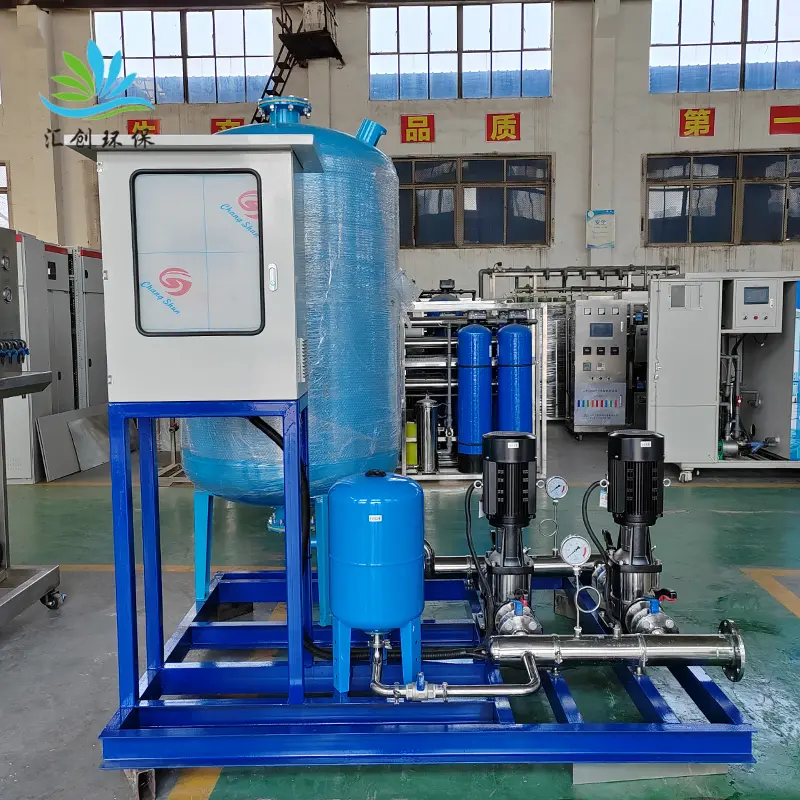

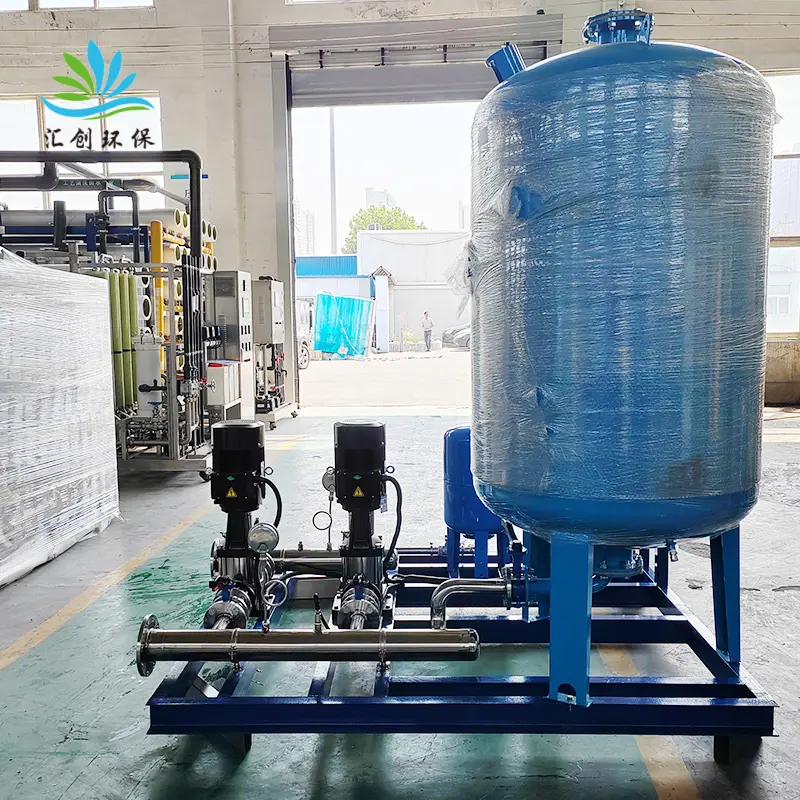

The Smart Constant Pressure Water Supply System designed and manufactured by Huichuang Environmental Protection Equipment Co., Ltd. is an advanced, skid-mounted fluid control plant. Engineered specifically to tackle fluctuating water pressure and high energy consumption in global commercial and industrial networks, this system integrates high-precision pressure sensors, variable frequency drives (VFD), and intelligent programmable controllers (PLC) to maintain a perfectly uniform pipeline pressure regardless of sudden volume changes.

By constantly adjusting the motor speed of the dual multi-stage vertical booster pumps to match actual water usage, our integrated system drastically reduces mechanical wear and tear, cuts electrical utility costs, and ensures an uninterrupted, highly reliable water supply framework for downstream operations.

Technical Specifications & Product Architecture

To assist global B2B procurement managers, EPC contractors, and water engineering firms, here are the detailed specifications of our standard constant pressure water supply skid:

Key Advantages of Huichuang Constant Pressure Systems

• Highly Efficient VFD Energy Savings: Traditional water pumps run at 100% full speed continuously, wasting immense electricity during low-demand hours. Our variable frequency control panel automatically modulates power usage to exactly match your real-time flow rate, delivering an impressive 30% to 50% reduction in electricity bills.
• Premium Integrated Stainless Steel Construction: The entire skid—including the structural support base, central expansion pressure tank, and comprehensive plumbing conduits—is constructed from premium polished 304 stainless steel. This guarantees absolute corrosion resistance, maximum structural durability, and clean, rust-free water distribution.
• Smart Dual-Pump Alternating Logic: Controlled via a centralized smart PLC panel, the system balances running hours by automatically alternating between the two booster pumps. During peak demand periods, both pumps seamlessly activate in parallel to handle the heavy load, while integrated sensors offer absolute dry-running protection.
• Elimination of Mechanical Shock & Water Hammer: The intelligent VFD controller utilizes a soft-start and soft-stop algorithm. By avoiding sudden fluid velocity spikes, it entirely eliminates water hammer damage, thereby safeguarding your facility’s downstream pipe fittings and valves.

B2B Target Applications & Industries

Our heavy-duty, smart constant pressure booster skids are widely utilized by factory owners, utility departments, and facility managers across several global fields:

• Industrial Manufacturing & Cooling: Maintaining steady process water pressure for chemical plants, textile factories, injection molding, and cooling tower loop networks.
• Water Treatment Plant Delivery: Acting as the final pure water delivery skid for Reverse Osmosis (RO) and Ultrafiltration (UF) processing facilities.
• Commercial Facilities: Premium high-rise booster systems for hotels, corporate office hubs, hospitals, and educational campuses.
• Agricultural & Irrigation: Smart water distribution networks for large-scale greenhouses and automated sprinkler fields.

Frequently Asked Questions (FAQ)

How does the dual-pump alternating logic protect our investment?

If one pump runs continuously, it wears out much faster than the rest of the facility. Our PLC control system tracks the operational hours of each vertical pump. It systematically switches the master role between Pump A and Pump B, ensuring even wear and tear while providing 100% operational redundancy during scheduled maintenance.

Can this VFD water supply skid be integrated into a central factory management network?

Yes. Our smart PLC electrical control cabinets can be configured with standard RS485 communication interfaces and Modbus protocols. This allows your engineering team to monitor system pressure, alarm statuses, and power consumption remotely via your factory’s centralized SCADA system.

Partner with a Leading Chinese Source Factory: Supported by a 15,000 sqm workshop, 15 senior design engineers, and over 30,000 satisfied global clients, Shandong Huichuang offers premium OEM/ODM capabilities, custom dimensions, and direct B2B wholesale pricing. Contact our engineering desk today for a free custom technical diagram and competitive quotation for your fluid project!
