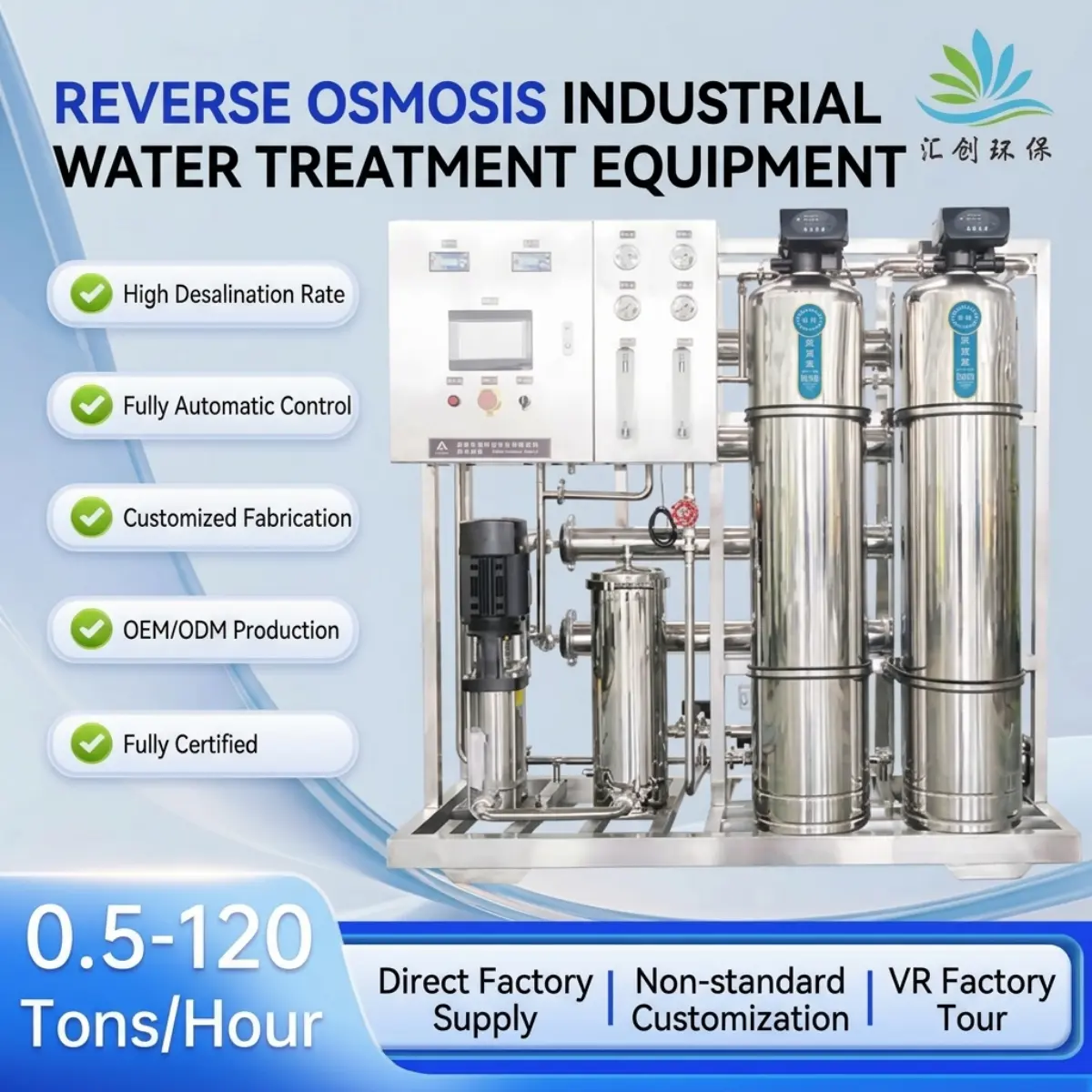

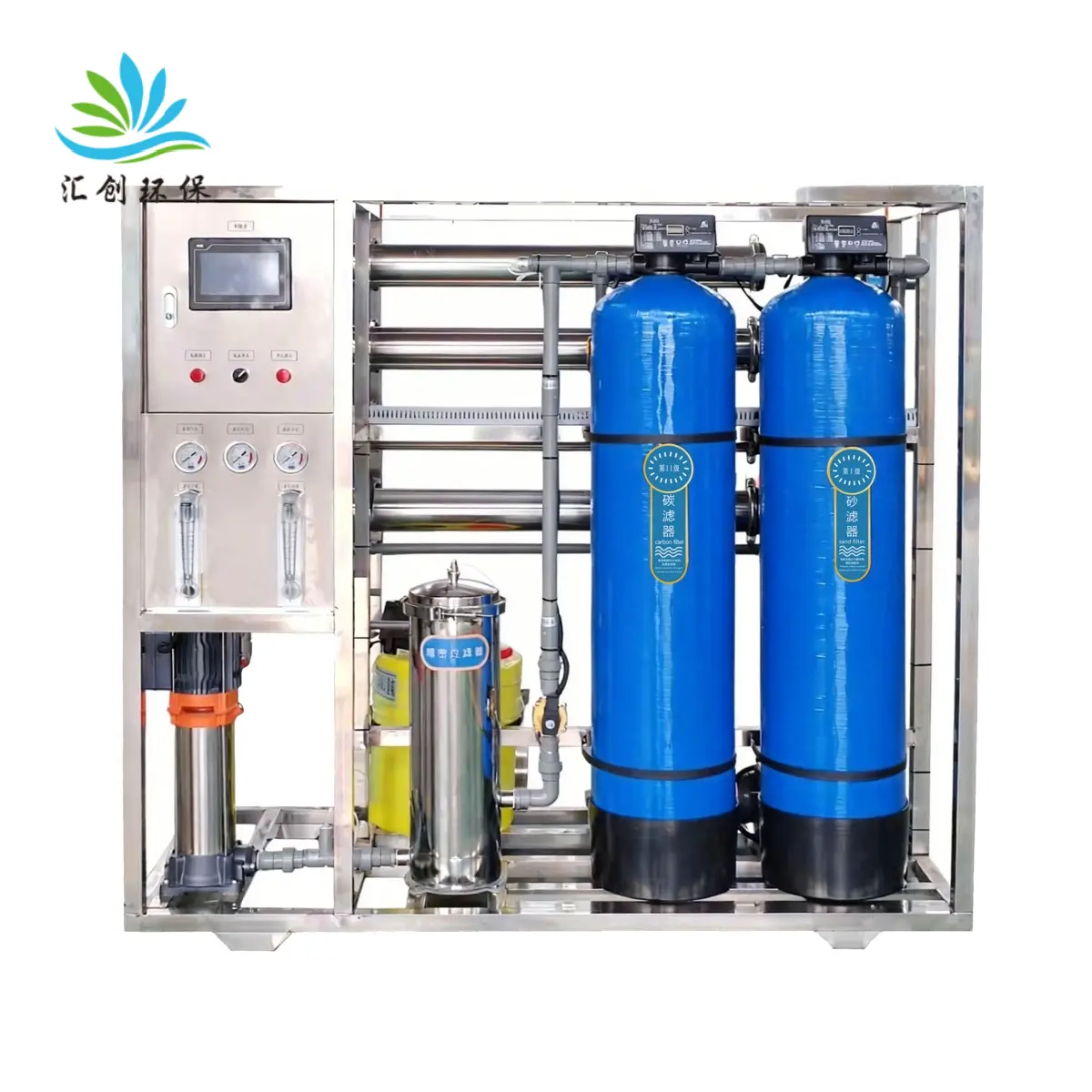

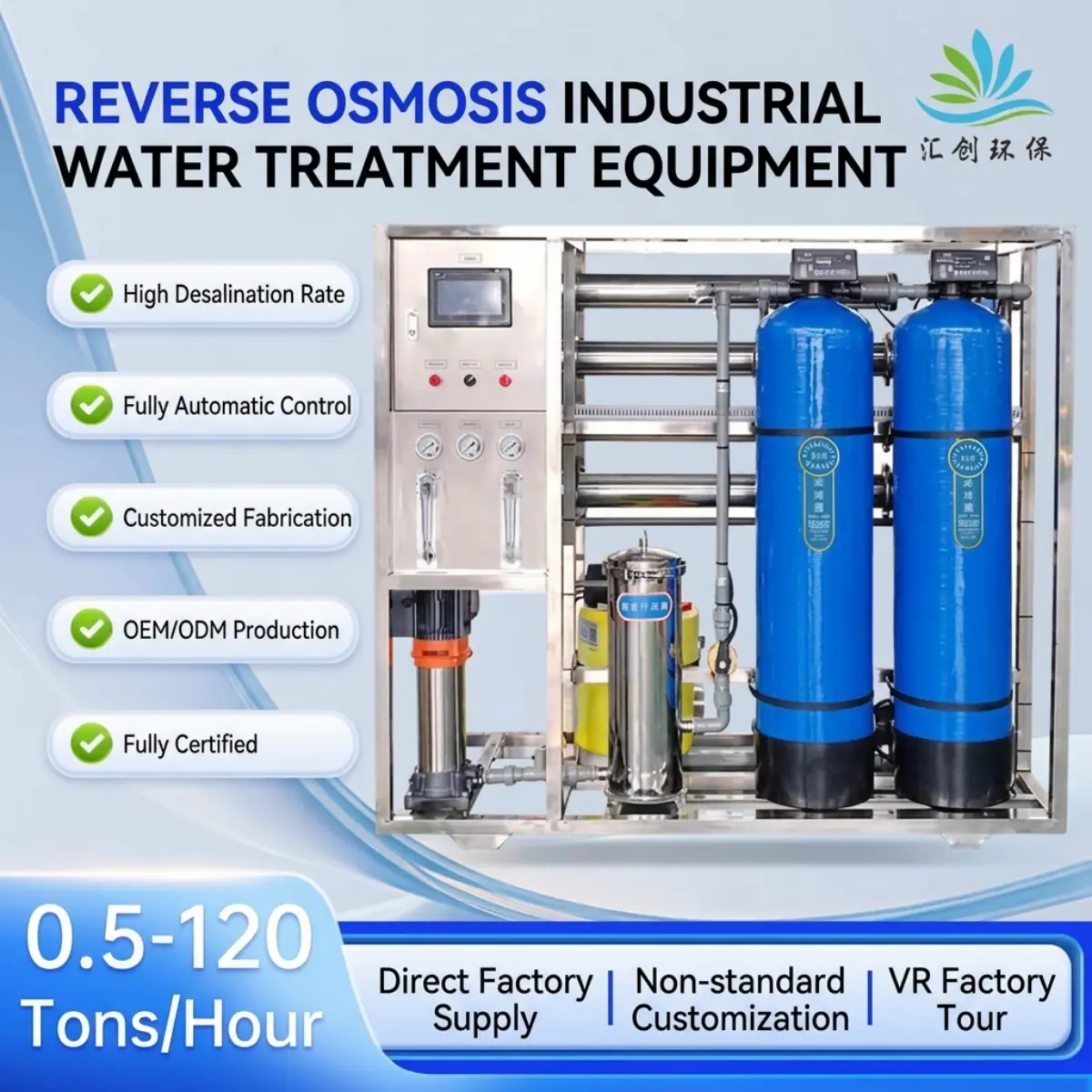

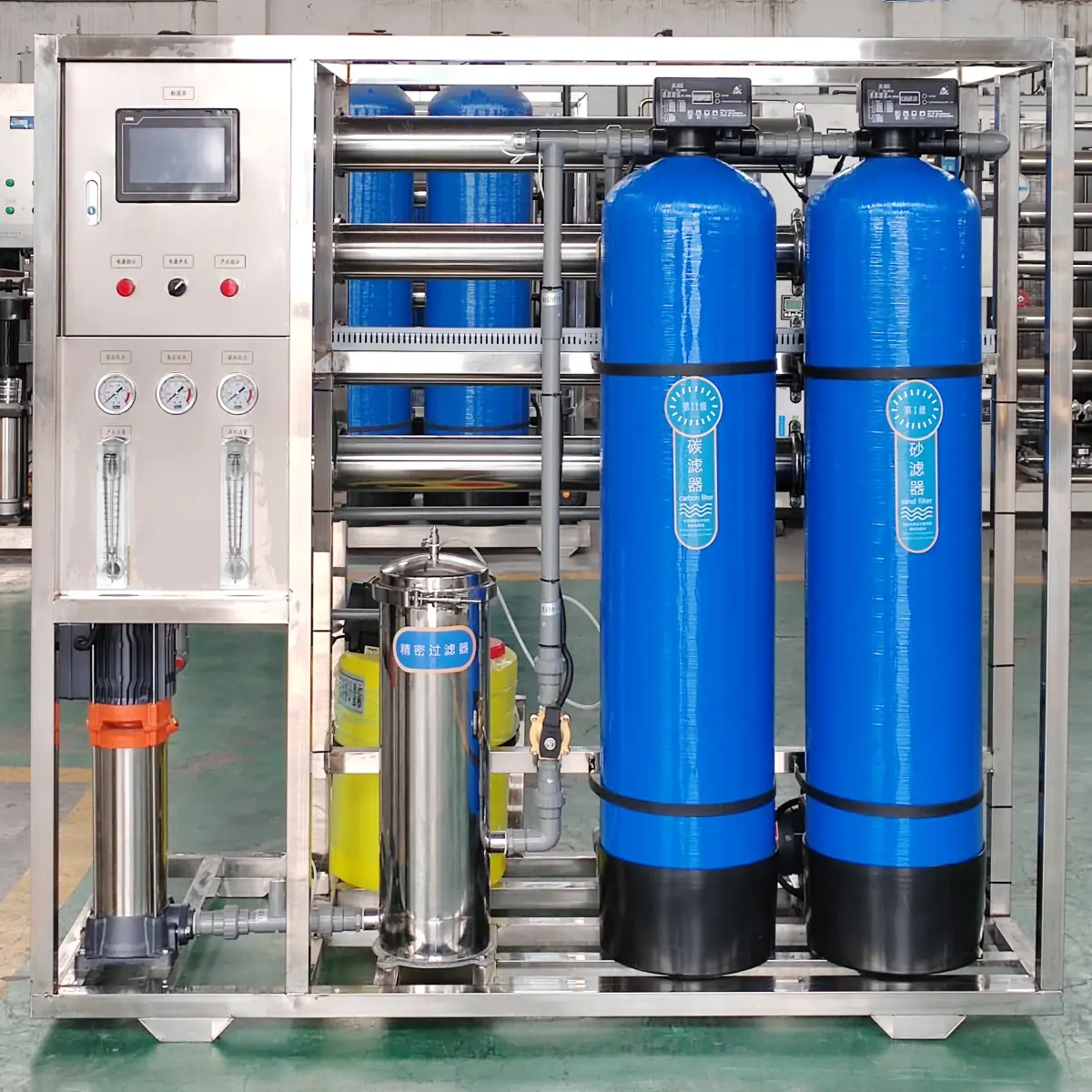

1 T/H Commercial & Small-Scale Industrial Reverse Osmosis (RO) Purification Plant
The 1 T/H Commercial Reverse Osmosis System engineered by Huichuang Environmental Protection Equipment Co., Ltd. is a premium, compact, and modular pure water solution. Designed explicitly for light industries and high-end commercial establishments, this system utilizes a rigorous 5-stage treatment process to efficiently transform municipal tap water into pristine, premium-grade drinking and processing water.
Fully compliant with the CJ94-2005 drinking water quality standards, our 1,000 LPH (Liters Per Hour) system features a highly compact footprint and a modular layout. It operates stably under an optimized working pressure of 0.8-1.0 MPa, keeping operational costs low while maximizing water safety and purity.
Technical Specifications & Product Parameters
To assist global B2B procurement managers, engineering firms, and OEM partners, here are the detailed specifications of our standard 1 T/H Commercial RO system (Model Series: HC-RO-1T/H):
| Technical Parameter | Commercial/Industrial Specification Details |
|---|---|
| Standard Production Capacity | 1 Ton / Hour (1,000 LPH). Custom range spans from 0.5 to 120 T/H. |
| Working Operating Pressure | 0.8 – 1.0 MPa |
| Total Power Rating | 1.0 – 1.5 KW (Low power consumption engineering) |
| Power Supply Input | 220V / 380V @ 50Hz (Adaptive commercial/industrial voltage) |
| Water Recovery Rate | 50% – 70% (Highly efficient brine-to-permeate yield) |
| Applicable Source Water | Municipal Tap Water, Freshwater Underground Wells |
| Treatment Process | Advanced 5-Stage Treatment / Fully Automated Control |
| Design & Quality Standards | CJ94-2005 Standard for Drinking Water Quality |
| Structural Variations Available | Standard FRP Blue Tank Edition vs. Premium Stainless Steel (SUS304) Edition |
Why Choose Huichuang Commercial RO Pure Water Skids?
- Heavy-Duty Premium SUS304 Framing: Constructed with a high-end 304 stainless steel brushed finish, the skid is intensely resistant to rust and chemical corrosion. We offer both heavy-duty blue FRP pre-treatment vessels and polished stainless steel tanks to match your target aesthetic and durability standards.
- Unattended Smart Automation (One-Key Start): Driven by an intelligent control center, the system automatically shuts down when pure water levels are high and turns back on when levels are low. Features include integrated self-protection, smart pressure alarms, and timed power-off options for hassle-free maintenance.
- Compact, Mobile & Plug-and-Play Design: Engineered with a modular and space-saving layout, our integrated 1 T/H system can be built with heavy-duty casters for effortless relocation. Installation is incredibly straightforward—simply connect the plumbing for inlet water, pure permeate, and drain discharge, wire the electricity, and press start.
- Comprehensive Factory B2B & OEM/ODM Support: We are a direct source manufacturer occupying a 15,000 sqm workshop. We fully back wholesale distribution partners with custom branding (OEM), private labeling, custom dimensional designs, and complete VR factory-inspection transparency.
Target Applications & Commercial Sectors
Our highly adaptable 1,000 LPH reverse osmosis filtration skids are engineered to serve diverse light-industrial and institutional settings:
- Hospitality & Institutional: Direct high-purity drinking water networks for hotels, guesthouses, corporate offices, universities, and residential communities.
- Food & Beverage Production: Pure water supply for ingredient rinsing, food processing, small-scale brewing, and cosmetic preparation.
- Light Industrial Processes: Pure water supply for small boilers, chemical mixing, and automated circuit rinsing lines.
Frequently Asked Questions (FAQ)
What is the difference between the FRP blue tank model and the Stainless Steel model?
The core filtration technology remains identical. However, the premium Stainless Steel (SUS304) edition provides a highly aesthetic, sanitary, and ultra-durable shell that excels in high-humidity or sanitary environments, whereas the FRP blue tank model offers exceptional, budget-friendly corrosion resistance for cost-sensitive commercial projects.
Is this 1 T/H system difficult to install for overseas clients?
Not at all. The unit is delivered completely pre-assembled and factory-tested on a single skid. To set it up, you only need to connect three basic pipes (Water Inlet, Pure Water Product, and Concentrated Brine Drain), plug it into your power source, and turn it on with our one-key system. We provide comprehensive manuals and video support for overseas installation teams.
Partner with a Leading Certified Manufacturer: Backed by a high-end technical team of 15 senior engineers and 30+ field technicians, Shandong Huichuang has successfully empowered over 30,000 global clients. Contact us today for direct factory wholesale quotes, custom technical layout diagrams, and premium private label (OEM) contract details!
