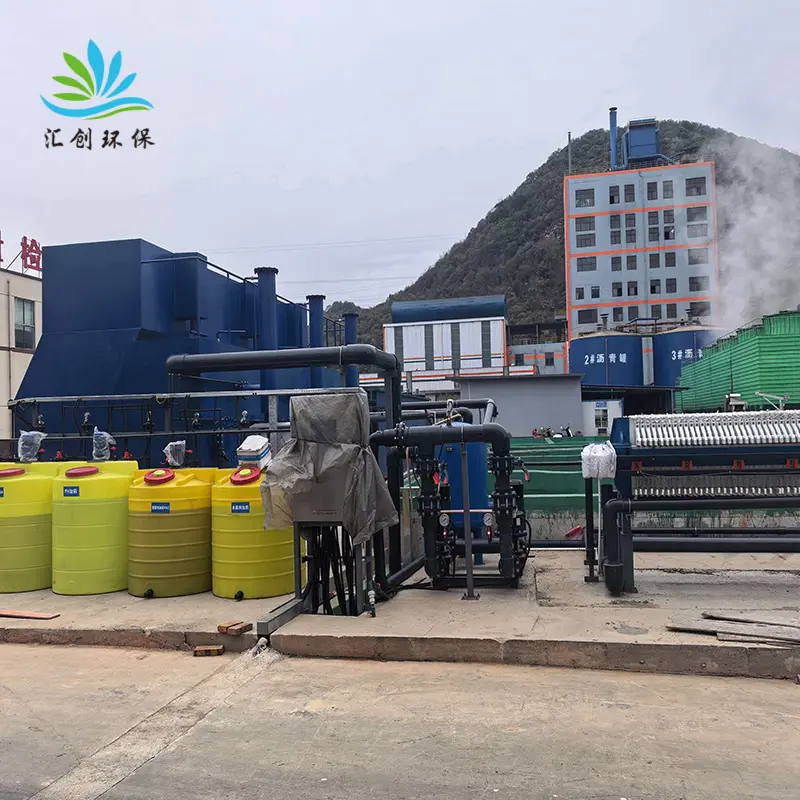

Heavy-Duty 60 T/H Integrated Compact Water Purification Plant Overview

The 60 T/H Integrated Water Purification System designed and manufactured by Shandong Huichuang Environmental Protection Equipment Co., Ltd. is a highly mature, turnkey packaged fluid treatment solution. Raw surface water—such as river water, lake water, shallow wells, and mountain streams—frequently suffers from intense turbidity shifts, suspended solids, mud, and organic pollution, especially during rainy seasons. Traditional water purification setups require scattered treatment stages, immense concrete basins, high footprint allocation, and costly manual supervision.

Our engineered 60,000 LPH integrated purification plant solves these common infrastructure limitations by merging multiple complex treatment loops into a single compact, reinforced steel skid. It safely transforms highly turbid surface water into clean, safe, and fully compliant drinking or manufacturing process water, ensuring a reliable, long-term continuous utility network.

Technical Specifications & Engineering Parameters

To assist global B2B procurement managers, municipal contractors, and EPC engineering firms in choosing the right configuration, here are the certified specifications of our 60 T/H integrated purification plant:

• Primary Filtration Method: Heavy-Duty Multi-Layer Quartz Sand & Active Carbon Bed

5-in-1 Advanced Treatment Architecture

To secure uniform water clarity even during sudden river muddying or peak-load surges, our packaged water plant leverages a highly protective, sequential processing layout:

• 1. Coagulation & Flocculation: Precise automated dosing chemical pumps inject coagulants into the incoming stream. Static mixers rapidly bind with fine mud particles, micro-colloids, and algae, forming heavy, easily settleable flocs.
• 2. High-Efficiency Sedimentation: The water enters an optimized internal clarification zone where large suspended solids and chemical flocs settle down to the bottom sludge hoppers quickly under gravity.
• 3. Deep Multi-Media Filtration: Clarified water passes downward through premium multi-layer quartz sand beds, stripping out the remaining micro-suspended elements and fine particulate turbidity.
• 4. Premium Carbon Adsorption: Water passes through selected activated carbon layers to eliminate organic elements, trace chlorine, residual odors, pigments, and off-flavors from raw nature.
• 5. Final Sanitizing Disinfection: A final disinfection dose ensures that bacteria, pathogens, and viruses are thoroughly deactivated, delivering clean, sanitary water for direct domestic or industrial use.

Why Choose Huichuang Packaged Treatment Systems?

• Turnkey Packaged Layout & Minimal Space: Traditional open basin waterworks require massive real estate footprints and months of disruptive on-site civil concrete pouring. Our integrated steel tank packs the entire process into a space-saving footprint that can be easily installed above ground on a flat pad.
• Smart PLC Automation via Unattended Control: Equipped with a centralized industrial electrical control cabinet, the system completely automates raw water intake, timed chemical dosing, automated filter backwashing, forward flushing, and auto-sludge discharge loops—allowing safe 24/7 operation with no need for full-time on-site labor.
• Superb Shock Load & Turbidity Resistance: Designed with heavy-duty internal hydraulic baffling, our equipment possesses superior resistance against raw water quality surges. Even when heavy rains spike inlet turbidity, the system dynamically maintains constant, safe effluent standards.
• Pure Physical Filtration & Zero Waste Traps: Relying primarily on physical and mechanical separation principles, the plant requires no extreme hazardous chemical handling or secondary pollution treatments, ensuring a green carbon footprint and ultra-low routine maintenance costs.

B2B Target Applications & Fields

• Rural Centralized Potable Supply: Providing reliable direct tap drinking water networks for rural villages, municipal townships, and remote farming communities.
• Industrial & Construction Infrastructure: Safe living water networks for mine campuses, massive factory factories, construction campsites, and temporary work zones.
• Decentralized Utility Frameworks: Independent, high-clarity water treatment systems for remote ecotourism resorts, scenic parks, military camps, and island resorts.

Frequently Asked Questions (FAQ)

How does the automated backwashing system maintain the filtration media?

Our integrated PLC controller constantly tracks operational run times and hydraulic pressure deltas across the filter beds. When parameters hit the preset limit, the system automatically triggers a high-volume reverse flush to clear out trapped sediment from the sand and carbon media, dumping the waste via the auto-drain pipe and fully restoring filtration flux without human labor.

Can this 60 T/H system operate reliably in cold climates or freezing zones?

Yes. For sub-zero or cold winter operations, our design engineers can equip the integrated steel structure with specialized insulation layers, heat-tracing cables, and customized containerized shells to ensure that water never freezes inside the settlement or chemical dosing chambers.

Partner with a Leading Chinese Source Factory: Supported by a 15,000 sqm production workshop, 15 senior design engineers, and a global track record of serving over 30,000 clients, Shandong Huichuang provides direct wholesale B2B pricing, complete engineering blueprints, and lifetime technical support. Contact our engineering desk today for a free custom CAD layout diagram and a competitive proposal for your surface water project!
