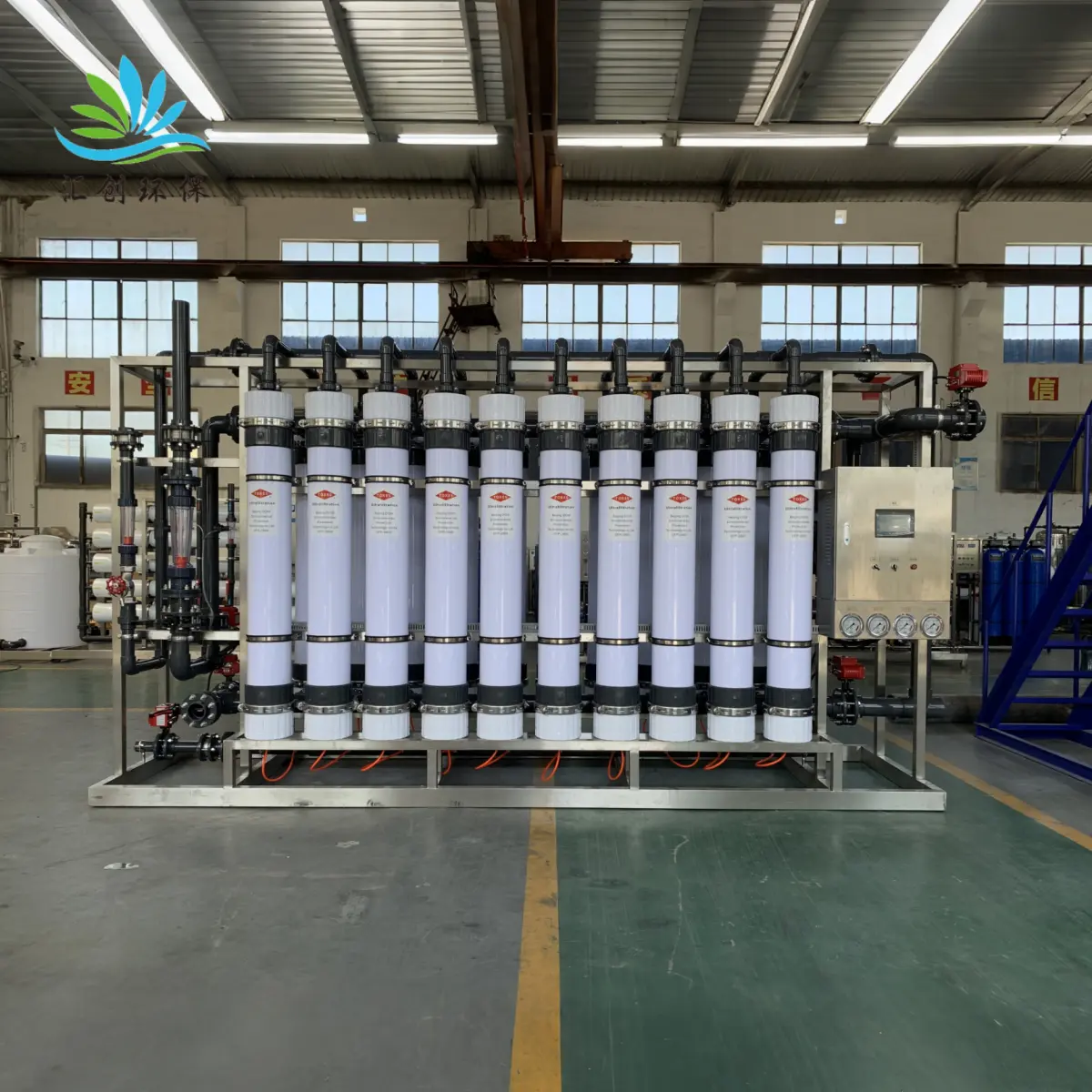

Industrial 40 T/H Ultrafiltration (UF) System Overview
The 40 T/H Industrial Ultrafiltration System by Huichuang Environmental Protection Equipment Co., Ltd. is engineered for high-volume, reliable liquid separation and purification. Utilizing cutting-edge PVDF (Polyvinylidene Fluoride) hollow fiber membranes, this water filtration plant provides an absolute barrier to suspended solids, bacteria, viruses, colloids, and macromolecules without altering the chemical balance of your water.
Whether used as a standalone purification unit or as a highly protective pretreatment for commercial industrial Reverse Osmosis (RO) systems, our UF equipment delivers exceptional turbidity reduction and consistent effluent quality under flexible working pressures (0.2-0.35 MPa).
Technical Specifications & Product Parameters
To help you choose the right configuration for your water treatment project, here are the standard technical details of our 40 T/H UF system:
| Parameter | Specification Details |
|---|---|
| Production Capacity | 10 – 50 Tons / Hour (Standard model rated at 40 T/H) |
| Working Pressure | 0.2 – 0.35 MPa |
| Total Power Rating | 5 – 20 KW |
| Power Supply | 380V / 50Hz (Industrial Three-Phase) |
| Water Recovery Rate | Up to 90% |
| Membrane Material | Premium PVDF (High chemical & fouling resistance) |
| Applicable Source Water | Municipal Tap Water, Underground Well Water, Surface Water |
| Dimensions (L * W * H) | 260 x 120 x 180 cm |
| Design & Sanitary Standards | Compliant with “Standards for Drinking Water Quality” |
Key Features of Huichuang Ultrafiltration Plants
- Fully Automated PLC Control: The integrated smart control panel panel ensures unattended automatic operation. Features include automated smart backwashing, forward flushing, and system diagnostics to significantly minimize labor costs.
- Non-Standard Customization (OEM/ODM): As a direct source factory, we offer tailored skid designs, unique foot-prints, and upgraded configurations (Standard vs. Premium Industrial Models) to fit your precise layout and budget.
- Durable PVDF Hollow Fiber Modules: Compared to standard PAN or PES materials, our PVDF membranes offer superior oxidation resistance, high mechanical strength, and longer life spans under rigorous chemical cleaning cycles.
- High Cost-Effectiveness & Direct Factory Pricing: Eliminate middlemen. By ordering directly from our 15,000 sqm production facility, you secure competitive B2B wholesale pricing with exceptional build quality.
Target Applications & Industries
Our industrial-grade ultrafiltration equipment is heavily relied upon by water treatment engineering companies and EPC contractors across multiple global sectors:
- Food & Beverage: Clarification, concentration, and pure water treatment for ingredients and processing lines.
- Biotech & Pharmaceuticals: Pretreatment for high-purity medical process water, complying with sanitary standards.
- Electroplating & Surface Treatment: Heavy metal separation, plating bath recovery, and clean production rinsing.
- Textile, Printing & Dyeing: Advanced treatment for wastewater recycling and chemical dye recovery.
- Municipal & Reclamation: Deep purification of underground well water and high-efficiency water reuse (Midiwater Recycling).
Frequently Asked Questions (FAQ)
What is the typical lifespan of the PVDF membranes in this UF system?
Under standard operating conditions with regular automated backwashing and timely chemical cleaning (CIP), our high-strength PVDF hollow fiber membranes typically last 3 to 5 years, depending heavily on feed water turbidity.
Can this 40 T/H UF system handle variable feed water types?
Yes. The system is highly adaptive and successfully treats municipal water, surface water, and well water. For high-turbidity sources (SDI > 5), we highly recommend adding a multimedia or sand pre-filter ahead of the UF skid to secure peak membrane flux.
Get a Free Quotation & Technical Proposal: Contact our team of 15 senior engineers today to get a customized, non-standard diagram and direct source factory wholesale pricing for your 40 T/H UF project
